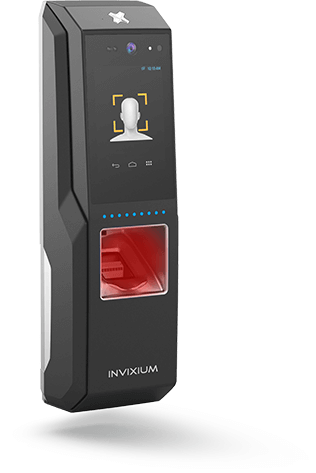

Fingerprint Biometric Solution TOUCH 2 FACE
Touchless. Multimodal. Affordable.

The All-In-One Touchless Biometric Solution.

The popular TOUCH 2 Series is now equipped with face recognition for access control and workforce management. The 5 MP camera on the TOUCH 2 Face performs fixed-focus face recognition of up to 5000 users (1:N) in under 1 second. Available from the Invixium factory or as a licensed firmware upgrade for all existing TOUCH 2 units in the field, TOUCH 2 Face is Invixium’s most affordable face recognition product for existing and new customers to conveniently shift to touchless biometrics for access control or workforce management. Ideal for high-security applications with a modest budget, TOUCH 2 Face is a multibiometric solution offering up to 4 factor authentication (Face + Fingerprint + Card + PIN) that truly shines where touchless security is in demand.

Compare Products

The Security You Need At A Price You Love
touchless face recognition detection system

Truly Accessible Touchless Face Recognition

Face recognition is now among the most in-demand biometric modalities on the market, and TOUCH 2 Face offers this cutting-edge authentication technology in Invixium’s most popular, cost-effective device. Touchless technology offers a weath of opportunities for healthy buildings, including touchless access control and time tracking to reduce the number of surfaces touched to gain access or clock in.

Touch-2-Face Fingerprint-biometric-security

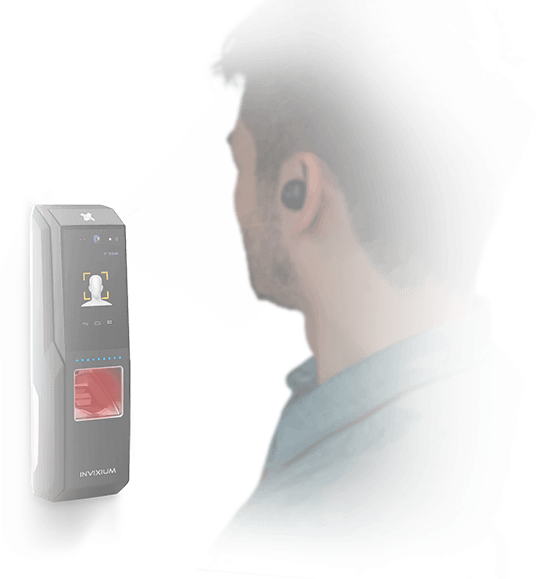

Touch 2 face recognition security system

Increased Security with Two Biometrics

True to its original purpose, TOUCH 2 Face still offers fingerprint modality for access control and workforce management. Added on top of this solution’s new face recognition, you can protect your building with unmatched security that only a combination of biometrics can provide.

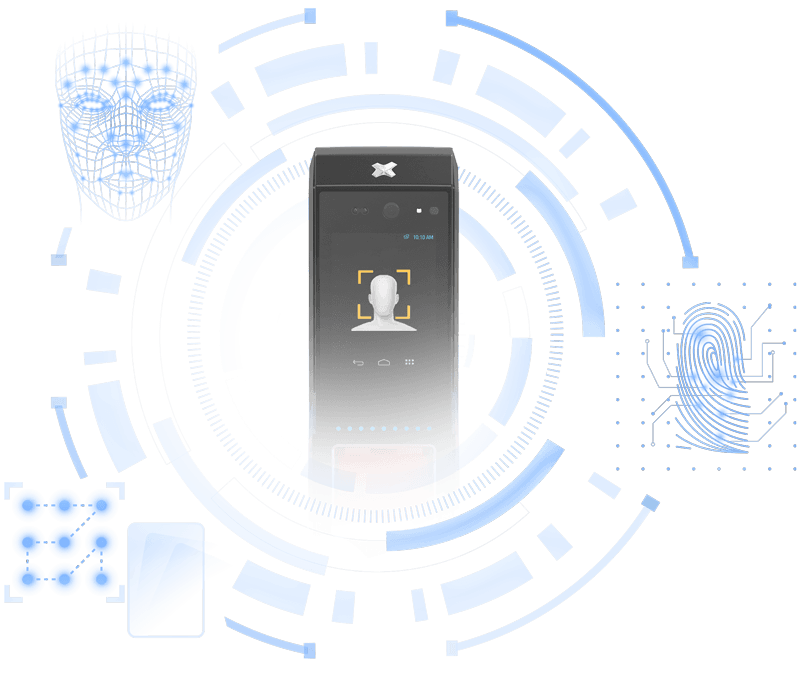

Multi Authentication Support IXM TOUCH 2 Face

Masterful Authentication Flexibility

TOUCH 2 Face is not limited to biometrics. Instead, this solution offers the added features of card and PIN access to grant you as much usage flexibility as you need. TOUCH 2 Face supports a variety of card types, including iCLASS, Prox, MiFare and DESFire, and its rugged 2.4” LCD screen brings a wonderful user experience to your personnel using PINs.

Envision TOUCH 2 Face At Your Business
touch2-face- touchless access control solution.

Frictionless Access Control Secures Healthy Buildings

TOUCH 2 Face offers touchless access control through biometric face recognition and/or touchless cards with an incredible amount of customization options. Secure your building with up to two biometrics and up to two additional credentials via card and PIN. This sophisticated, yet cost-effective access control solution boasts a high level of biometric security so you can feel confident that your most sensitive areas are protected.

Using face for biometrics workforce management

Improve Your Scheduling And Payroll With Smart Workforce Management

As a time tracking and workforce management solution, TOUCH 2 Face can eliminate shift change bottlenecks thanks to its incredibly fast processing speeds. Save time and money with this solution that assures you of your attendance records’ accuracy every period. Biometrics reduce the risk of accidental or intentional time theft because they cannot be stolen or copied, offering certainty that records are completely accurate.

Ideal Applications

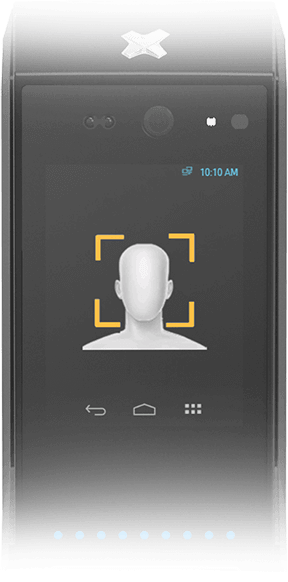

2.4 LCD Display

2.4” IPS LCD Creates An Excellent User Experience

Corning® Gorilla® Glass provides exceptional performance and protection due to its durability, praised by top brands in the consumer electronics industry. This 2.4” display ensures heightened accessibility and user experience for PIN access, function key inputs, enrollment from the device, and more. The in-plane switching (IPS) technology provides a wider viewing angle and stunning colors even in bright light.

made in Canada

High Quality Products Made In Canada

All Invixium products are proudly made in Canada with the highest-quality materials to ensure that our devices offer the utmost in engineering and user experience.

Ethernet Cable

One-Cable PoE+ Power And Communication For Simple Installation

One cable (CAT5/6) for power and communication makes installation fast and easy while also lowering installation costs and maintenance requirements.

IXM Partners

Integrations With Leading Access Control Software For Seamless Use

Via IXM Link, TOUCH 2 Face is integrated with a full range of industry-leading access control software including OnGuard by LenelS2, Honeywell Pro-Watch and more.

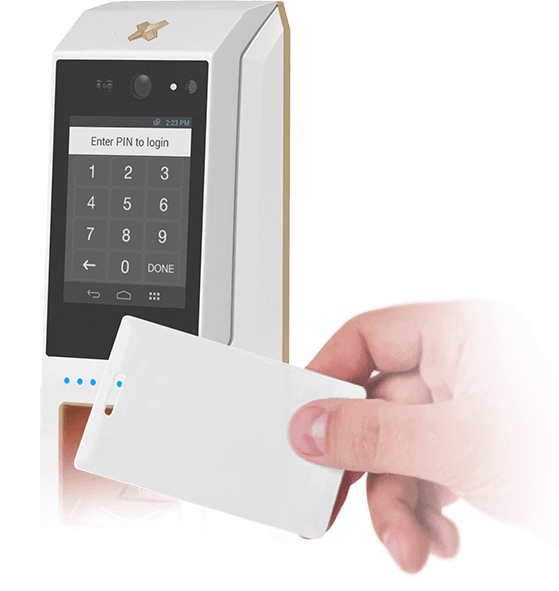

Card based access control solution

PIN And Card Add Non-Biometric Authentication Options

On top of face and fingerprint biometric modalities, TOUCH 2 Face also supports PINs and multiple card formats including MiFare and DESFire cards. Multiple cards per user are also supported by this versatile reader.

Door Access control TOUCH 2 FACE

Device Powers Door Strike Reduces The Amount Of Wires And Electricity Used At Your Doors

TOUCH 2 Face offers efficient power management that enables the device to divert extra power to the door strike – removing the need for the door strike or magnetic lock to have separate wiring for its own power supply. This makes installation and wiring much easier for the installers.

Even More Great Features

Large User Capacity
For Workforces Of Any Size

TOUCH 2 Face supports a 1:N capacity of 5,000 users for face recognition and 20,000 users for fingerprint; or a 1:1 capacity of 50,000 for face recognition and 100,000 for fingerprint.

Invixium Products Supported By Customization Options

To best serve all of our customers’ unique operational needs, Invixium offers the support of a team of engineers to provide a wide variety of customizations for biometric applications, software and hardware integrations, and more.

Communication Options Offer Customizable Security

TOUCH 2 Face communicates via Ethernet, Wiegand or OSDP2 to offer various levels of security and accessibility to any business.

Biometric Template And Communication Channel Encryption Ensures User Privacy

All biometric templates used by TOUCH 2 Face are encrypted to combat theft of credentials. When a person presents their biometric to the device, a RAW image is scanned by the built-in sensor and converted to an ANSI-378 template, which is encrypted using state of the art AES before storage.

Audio Intercom Adds Security And An Excellent User Experience

TOUCH 2 Face’s on-board microphone and speaker offer 2-way audio communication with SIP compatibility. Additionally, the speaker can also be used for audio alerts for programmed events such as fire alarm, anti-shock, etc. for additional security using TOUCH 2 Face.

Add-On Battery Backup For Assurance That Your System Will Always Be Running

TOUCH 2 Face offers an optional backup battery to prevent your system from going offline, even if a power cable isn’t readily available.

Panel Feedback Offers An Exquisite, Customizable User Experience

Your access control panel controls various feedback options carried out by TOUCH 2 Face including sounds and LEDs, all of which are customizable through TOUCH 2 Face’s companion software, IXM WEB.

High Impact And Ingress Ratings Create An Extremely Weather-Resistant Security Solution

TOUCH 2 Face is certified for IP65 level of ingress protection and IK08 level of impact protection. While this ensures that the product can be used outdoors without problems, we do recommend an overhang for harsh environments.

Tamper Protection Grants Peace-Of-Mind Against Hackers Or Data Thieves

TOUCH 2 Face is constructed with anti-shock vandal protection (ASVP) that triggers an alarm when an attempt is made to remove the device from where it’s installed as an added layer of security.

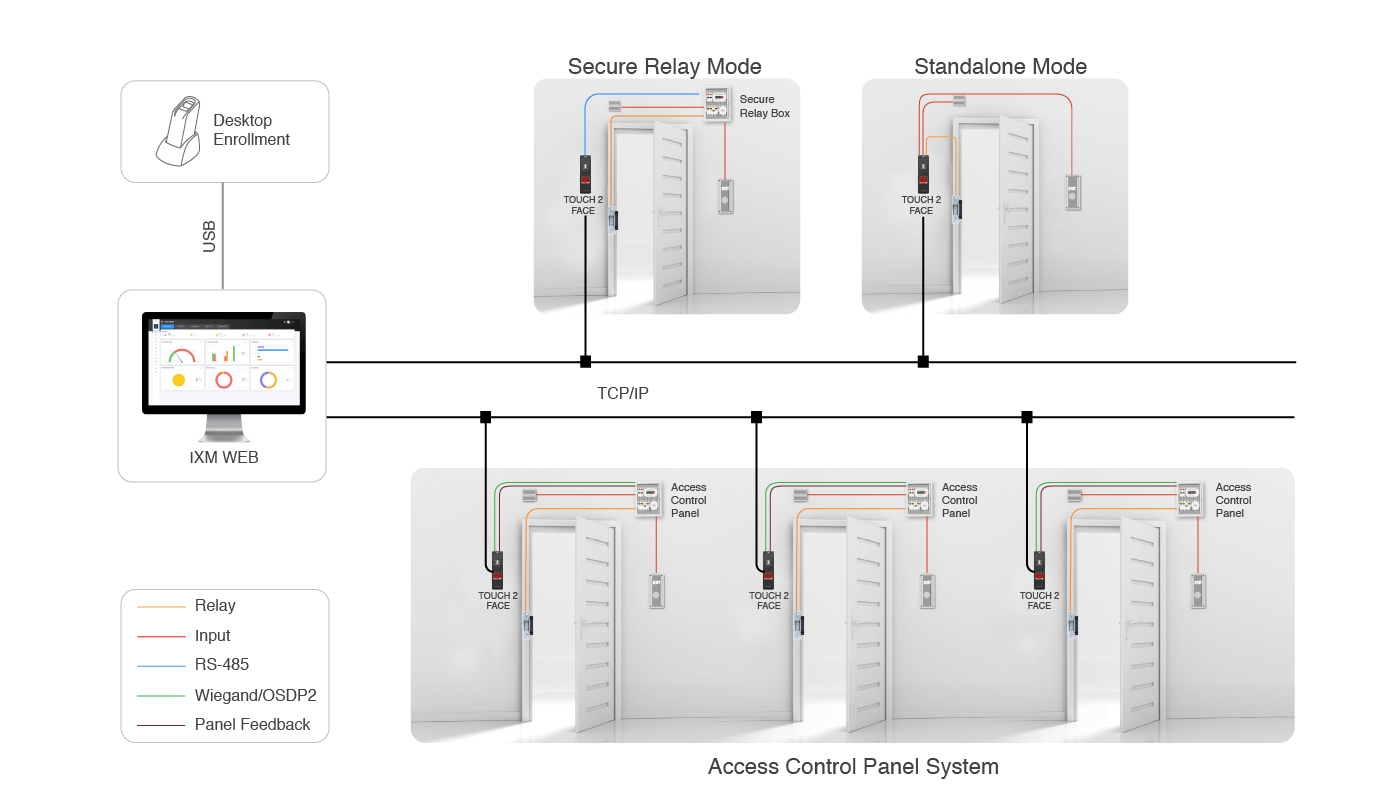

Network Architecture

TOUCH 2 Face Network Architecture

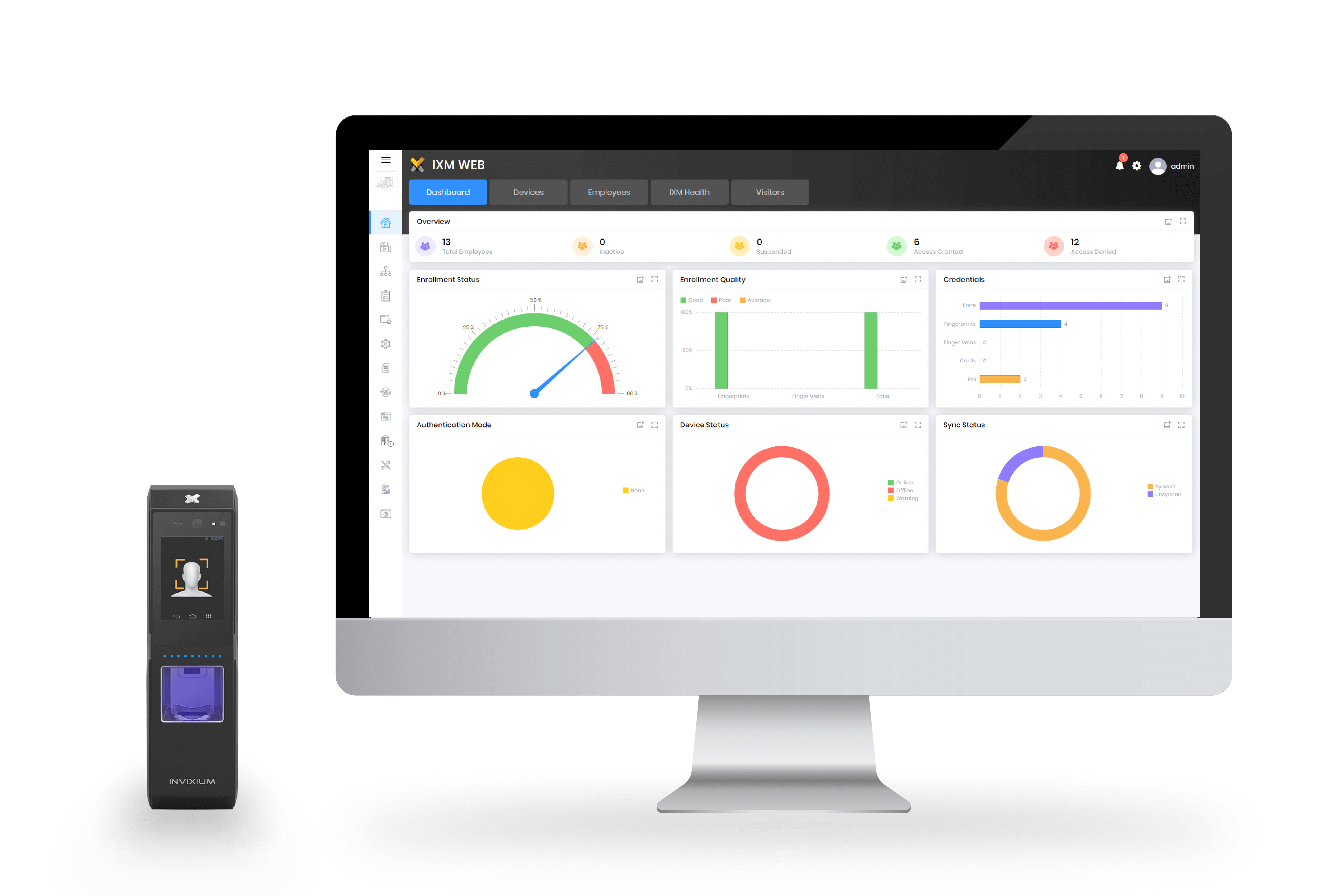

TOUCH 2 Face pairs with the software from Invixium, IXM WEB: an enterprise-grade, all-in-one solution for easy device and user management. User-friendly workflows and data-driven reports provide a comprehensive summary of your biometric system at the click of a button. IXM WEB is web-based, intuitive and customizable to a variety of business needs.

touch2 face software

Tech Specs

TOUCH 2 Face Features Description
Processor ARM Cortex A8 – 1 GHz
Graphics Engine POWERVR SGX530 3D
Random Access Memory 512MB DDR3L @ 400 MHz
Flash Memory – NAND 1 GB
Operating System Android OS
Ethernet 100 BASE-T
PoE IEEE 802.3at
Camera Omnivision 5 MP QVGA @ 30 fps
Flash High intensity LED Flash
Ambient Sensor Up-to 50,000 lux (Configurable)
Battery Backup Li ion 1400 mAh (Sold separately)
Wi-Fi IEEE 802.11b/g/n (Selected models only)
Bluetooth Selected Models only
USB USB 2.0 On-The-Go (OTG)
# of SPOs & SPIs 3 & 3
Wiegand Customizable up-to 512 bits
Door Strike Supply 12V @ 500 mA
Anti-Shock Vandal Protection Standard
LCD & Interface 2.4” IPS Capacitive Touch Screen
Auto On Proximity sensor Standard (2 meters)
Audio Speaker (2 Watts), Microphone
Super Strong Protective screen cover Corning® Gorilla® Glass (Antimicrobial)
Fingerprint sensor options SecuGen 500 dpi Optical sensor Lumidigm Multispectral sensor
1:N Users (Records) – Fingerprint Up to 20K users (40K biometric records)
1:1 Users (Records) – Fingerprint Up to 100K users (200K biometric records)
1:N Users (Records) – Face Recognition Up to 5K users (5K biometric records)
1:1 Users (Records) – Face Recognition Up to 50K users (50K biometric records)
RFID Card Options EM Prox, MiFARE, DESFire, HID Prox, iCLASS
# Transaction Logs Up to 500K
Communication Options TCP/IP, RS-485 (OSDP v2 Compliant), RS-232, USB-Aux
Power Supply 12VDC @ 1 A, 24VDC @ 0.5 A
Power Supply (Device Powers Door Strike) 12VDC @ 1.5 A
Operating temperature -20°C to +60°C (-4°F to +140°F)
Relative Humidity 0%~95%, non condensing
Dimensions 199 mm x 49 mm x 52 mm (L x W x D)
Colors Black & Chrome, Black & Titanium, White & Gold
Regulatory Approvals and Certificates FCC, CE, R&TTE, RoHS, IP65
Support for Other Languages Yes (requires IXM Translate license)
***If device is powering the door strike, power supply should be 12V DC @ 1.5A.
**Available at an additional cost
Only with S Series (FP Sensor option)
