Touch2 Fingerprint access control

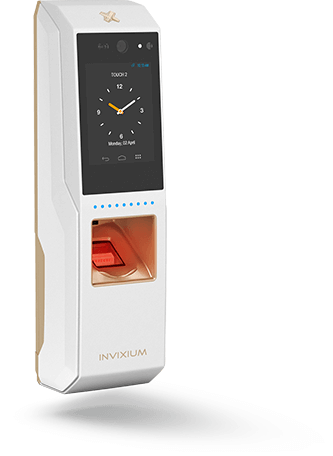

Touch2 Biometric fingerprint reader
Multifactor. Versatile. Affordable.

Invixium's Most Popular Fingerprint Biometric Solution

TOUCH 2 is an interactive, do-it-all biometric reader from Invixium. TOUCH 2 boasts a refreshingly modern design and a wealth of user-friendly features, including an enhanced IPS LCD touchscreen built with Corning® Gorilla® Glass, lightning fast processing speeds thanks to its 1 GHz processor and 1 GB of built-in flash memory to store and access (1:N) up to 40,000 biometric templates. TOUCH 2 is the ultimate “do-anything” device, ready to install in a variety of businesses and applications.

Compare Products

The Agile Biometric Workhorse
SecuGen Optical Fingerprint

SecuGen Optical Fingerprint Sensor for All Applications

One of two fingerprint sensor options for TOUCH 2, the SecuGenOptical Fingerprint Sensor is an excellent choice for indoor, predictable environments such as offices, data centers and residential buildings. This sensor uses optical scanning to capture fingerprints and, paired with TOUCH 2’s memory and processing speed, does this in less than 1 second. This sensor is built to be scratch resistant and capture high quality images that reduce the rate of false matches and rejections.

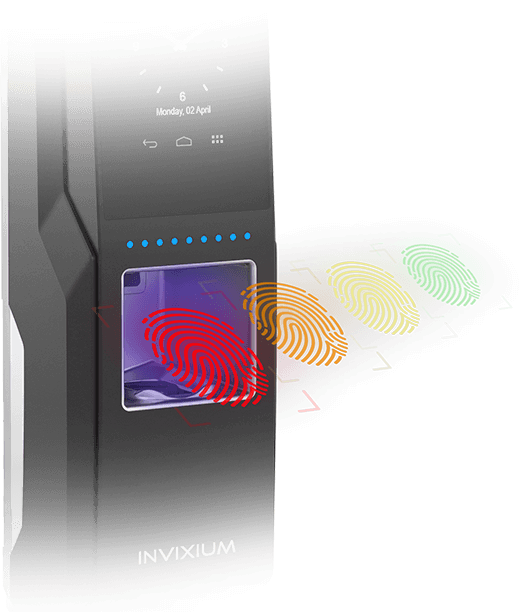

Lumidigm Multispectral Fingerprint Sensor

Lumidigm Multispectral Fingerprint Sensor Works When Others Don’t

The Lumidigm Multispectral Fingerprint Sensor is our recommended option for outdoor installations, or any other environment likely to encounter dust, dirt or other factors that complicate getting a fingerprint reading. Rather than capturing a surface image of the fingerprint, this rugged sensor uses multispectral imaging to read fingerprints deep into the subsurface of the skin to authenticate users in spite of challenges like water, dirt, dust or cuts on the hands.

PIN + Card Options Increase
PIN + Card Biometric security

PIN + Card Options Increase Application Flexibility

TOUCH 2 is a biometric reader with the ability to go above and beyond, offering PIN and card options to add additional layers to your security workflow. TOUCH 2 supports iCLASS, Prox, MiFare and DESFire cards, as well as multiple cards per user, to offer the flexibility of card credentials on top of its biometric core competency. And, TOUCH 2’s rugged 2.4” LCD screen brings a clean, seamless experience to PIN users.

See How TOUCH 2 Can Work With You
Fingerprint Biometrics Security

Fingerprint Access Control Offers A Unique Security Solution

TOUCH 2’s fingerprint biometrics enhance the security of any access control application because biometrics can never be lost, forgotten, stolen or copied. With two fingerprint sensor choices, businesses that install TOUCH 2 can rest assured that their security and user experience will be the best there is. Further secure your business with multi-factor authentication by enabling any combination of TOUCH 2’s fingerprint, card and PIN features to ensure that those who have access to your building are who they say they are.

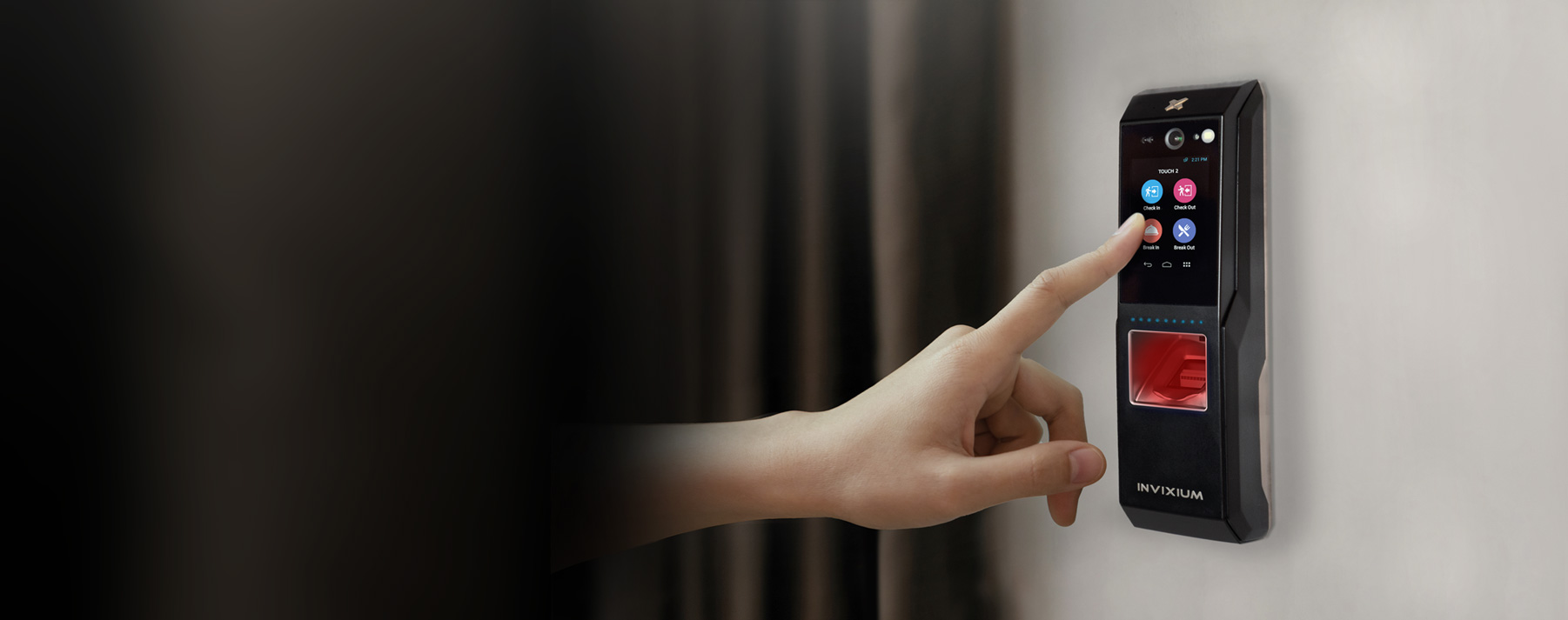

Payroll and Time Tracking

Achieve The Ultimate Payroll And Time Tracking Efficiency With Secure Workforce Management

TOUCH 2’s hallmark biometric features offer not only high-level access control, but also ensure staff credentials are never lost, stolen or shared. Deploying fingerprint authentication reduces the risk of accidental or intentional time theft while offering certainty that you have accurate records of who is clocking in and out, and when. Thanks to its incredible processing speed, TOUCH 2 can also eliminate bottlenecks during large shift changes so your staff can get to work quickly.

Ideal Applications

2.4” IPS LCD IXM TOUCH 2

2.4” IPS LCD Creates An Exquisite User Experience

TOUCH 2’s Corning® Gorilla® Glass IPS LCD screen has been praised by top brands in the consumer electronics industry for its high level of durability. The 2.4” display offers a high level of accessibility and user experience for PIN access, function key inputs, enrollment from the device, and more. The in-plane switching (IPS) technology provides a wider viewing angle and stunning colors even in bright light.

IXM Partners

Integrations With Leading Access Control Software Ensure Seamless Use

Via IXM Link, TOUCH 2 integrates with industry-leading access control software including OnGuard by LenelS2, Honeywell Pro-Watch and more.

Ethernet Cable

Communication Options Offer Versatile Security

TOUCH 2 communicates via Ethernet, Wiegand or OSDP2 to offer various levels of security and accessibility for a variety of IT policies and capabilities.

Biometric Template

Biometric Template And Communication Channel Encryption Ensures Individual Privacy

All of TOUCH 2’s biometric templates are encrypted to prevent credential theft. When a person shows their biometric to the device, a RAW image is scanned by the built-in sensor and converted to an ANSI-378 template, which is encrypted using state of the art AES encryption before storage.

Elevate Security IXM TOUCH 2

Elevate Security And User Experience With On-Board Audio Intercom

TOUCH 2’s microphone and speaker offer 2-way audio communication with SIP compatibility. And, businesses can use the speaker for audio alerts for programmed events such as fire alarm, anti-shock, etc. for additional door security.

Panel Feedback Enables Touch 2

Panel Feedback Enables An Interactive User Experience

Your access control panel controls various feedback options carried out by TOUCH 2 such as sounds and LEDs, which you can customize through IXM WEB, TOUCH 2’s companion software.

Even More Great Features

Large User Capacity
For Workforces Of Any Size

User Capacity: TOUCH 2 supports a 1:N capacity of 40,000 fingerprint templates or a 1:1 capacity of 100,000 fingerprint templates.

High Quality Products
Made In Canada

Invixium proudly uses the highest-quality materials at its Canada-based production facility to provide our customers with the utmost in engineering and user experience.

One-Cable PoE+ Power And Communication Simplify Installation

One cable (CAT5/6) for power and communication makes installation quick and simple while also lowering installation costs and maintenance requirements.

Invixium Products Offer Extended Application Options With Customization

To best serve all of our customers’ unique business needs, Invixium’s team of engineers offers a wide variety of customizations for biometric applications, software and hardware integrations, and more.

Add-On Battery Backup Assures That Your System Will Never Go Offline

Invixium offers an optional backup battery for TOUCH 2 to prevent your system from going offline, even when a power cable isn’t available.

Impact And Ingress Ratings Resist All Types Of Environmental Conditions

TOUCH 2 is certified for IP65 level of ingress protection and IK08 level of impact protection. Though these ratings mean that the product can be used outdoors, Invixium recommends an overhang for harsh environments.

PIN And Card Features Add Non-Biometric Authentication

TOUCH 2 supports PINs and multiple card formats including prox, DESFire and MiFare, as well as multiple cards per user. This adds further functionality to your device, aiding in increasing security or transitioning from cards to biometrics over time.

Tamper Protection Grants Peace-Of-Mind Against Hackers Or Data Thieves

TOUCH 2 includes a built-in anti-shock vandal protection (ASVP) that sounds an alarm when an attempt is made to remove the device from its installed location as an added layer of security.

Device Powers Door Strike Lowers The Amount Of Wires And Electricity Used

The efficient power management offered by TOUCH 2 enables the device to divert extra power to the door strike, so the door will not require its own power supply.

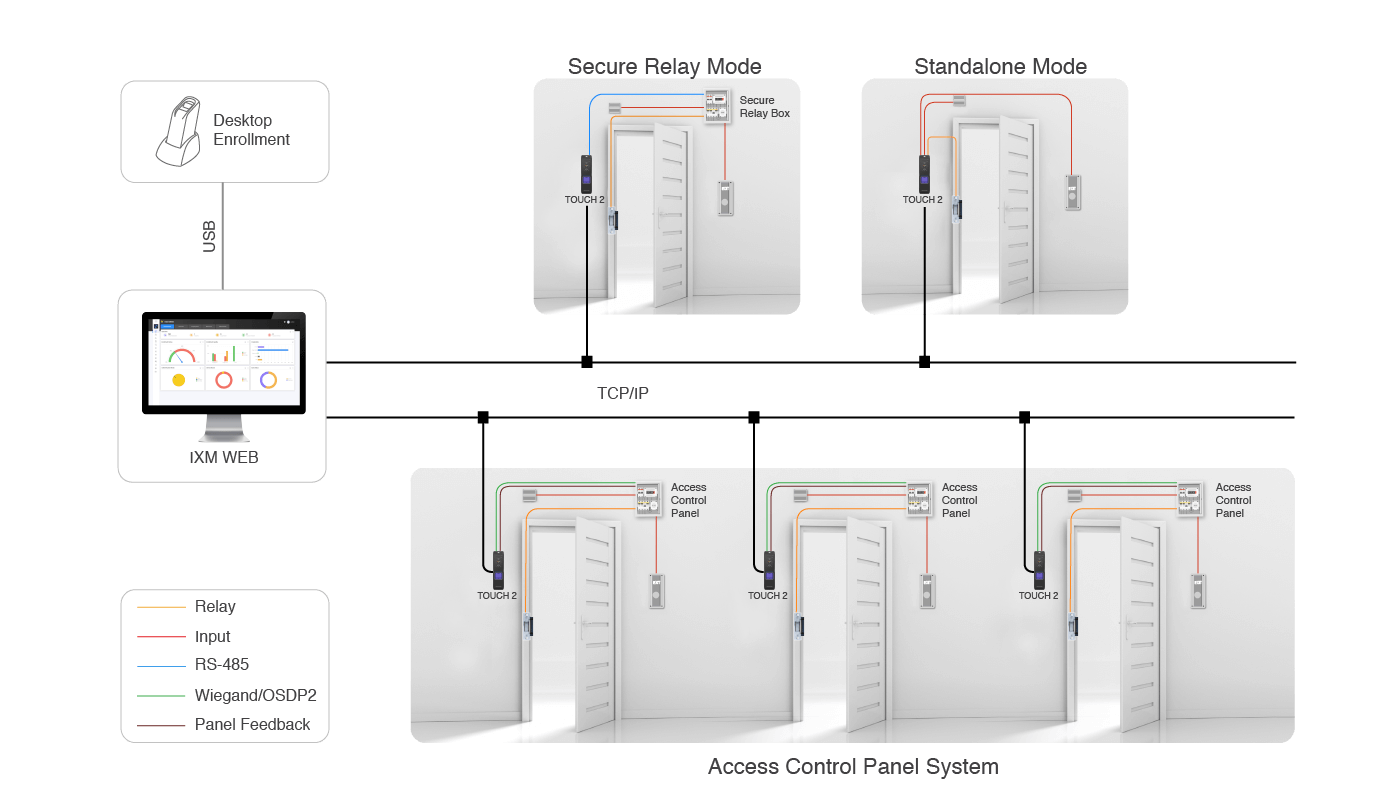

Network Architecture

TOUCH 2 Network Architecture

Software

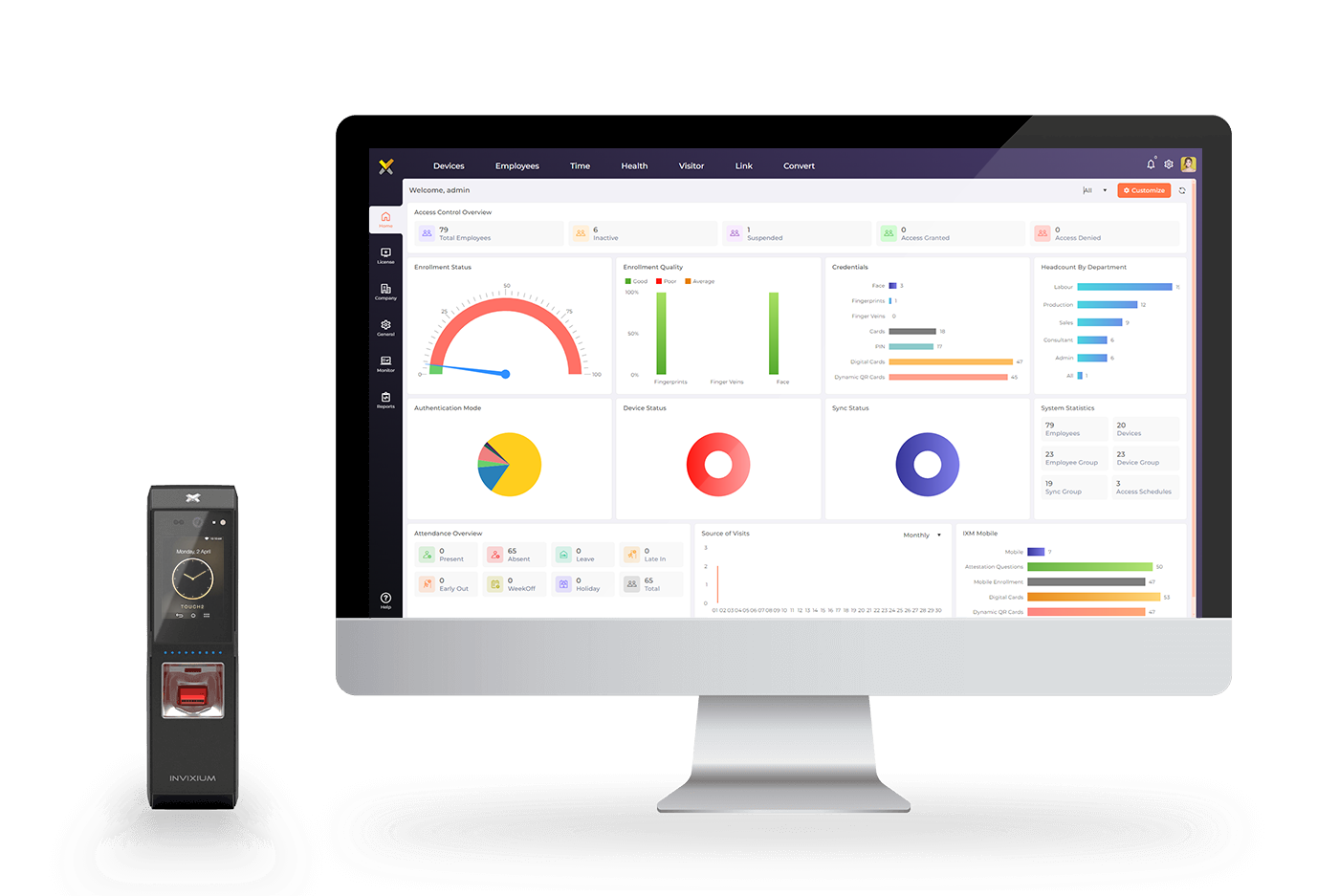

Invixium’s web-based software companion for TOUCH 2 is IXM WEB: an enterprise-grade, all-in-one software that manages devices and users with ease. Data-driven reports and user-friendly workflows offer a constant, complete summary of the health of your biometric system whenever you need it, and this software is fully customizable.

Touch 2 Software

Tech Specs

TOUCH 2 Features Description
Processor ARM Cortex A8 – 1 GHz
Graphics Engine POWERVR SGX530 3D
Random Access Memory 512MB DDR3L @ 400 MHz
Flash Memory – NAND 1 GB
Operating System Android OS
Ethernet 100 BASE-T
PoE IEEE 802.3at
Camera Omnivision 5 MP QVGA @ 30 fps
Flash High intensity LED Flash
Ambient Sensor Up-to 50,000 lux (Configurable)
Battery Backup Li ion 1400 mAh (Sold separately)
Wi-Fi IEEE 802.11b/g/n (Selected models only)
Bluetooth Selected Models only
USB USB 2.0 On-The-Go (OTG)
# of SPOs & SPIs 3 & 3
Wiegand Customizable up-to 512 bits
Door Strike Supply 12V @ 500 mA
Anti-Shock Vandal Protection Standard
LCD & Interface 2.4” IPS Capacitive Touch Screen
Auto On Proximity sensor Standard (2 meters)
Audio Speaker (2 Watts), Microphone
Super Strong Protective screen cover Corning® Gorilla® Glass (Antimicrobial)
Fingerprint sensor options SecuGen 500 dpi Optical sensor Lumidigm Multispectral sensor
1:N Users (Records) – Fingerprint Up to 20K users (40K biometric records)
1:1 Users (Records) – Fingerprint Up to 100K users (200K biometric records)
RFID Card Options EM Prox, MiFARE, DESFire, HID Prox, iCLASS
# Transaction Logs Up to 500K
Communication Options TCP/IP, RS-485 (OSDP v2 Compliant), RS-232, USB-Aux
Power Supply 12VDC @ 1 A, 24VDC @ 0.5 A
Power Supply (Device Powers Door Strike) 12VDC @ 1.5 A
Operating temperature -20°C to +60°C (-4°F to +140°F)
Relative Humidity 0%~95%, non condensing
Dimensions 199 mm x 49 mm x 52 mm (L x W x D)
Colors Black & Chrome, Black & Titanium, White & Gold
Regulatory Approvals and Certificates FCC, CE, R&TTE, RoHS, IP65
Support for Other Languages Yes (requires IXM Translate license)
***If device is powering the door strike, power supply should be 12V DC @ 1.5A.
**Available at an additional cost
Only with S Series (FP Sensor option)
×
